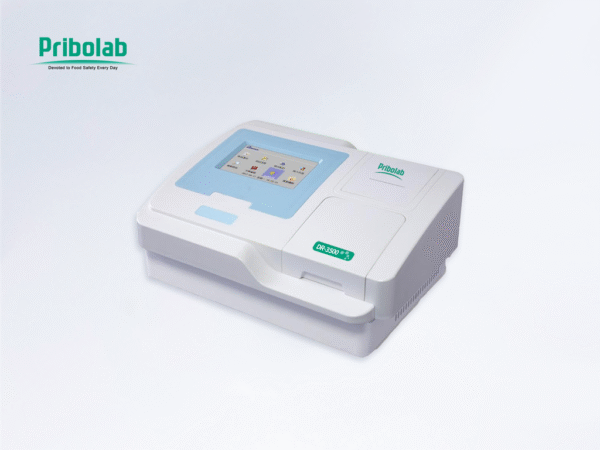

Pribolab®ELISA Plate Reader

Description

General Information

Pribolab^®DR-3500 ELISA Plate Reader is used with PriboFast^®ELISA kit series, for qualitative or quantitative detection of target analytes in grains, food and feed, etc. There are abundance functions: absorbance mode, cut-off qualitative calculation, single-point scaling, polyline regression, linear regression, exponential regression, logarithmic regression, double logarithmic regression, log-logit power regression and other calculation. It has a flexible qualitative formula input function to meet the different parameter settings of same reagents and different reagents methods.

Features

Built-in embedded system, no need for external PC；

Full screen display of 96-well plate data, intuitive visual layout operation interface；

Convenient touchscreen input with optional external mouse and keyboard；

Four measurement methods: single-wavelength/dual-wavelength/two-point method/kinetic method；

Layout and save import functions greatly improve the testing efficiency of frequently used projects；

Optional external PC software, network support, to meet the direction of digital development, can be customized upload；

Printing: Built-in thermal printer, external printer can be connected;

Slats type: standard 96-well or other type enzyme plates, strips;

Parameters

Size (L×W×H)	475 mm×340 mm×210 mm	Weight	10 kg
Display	7-inch LCD touch screen	Wavelength range	400~800 nm
Sensitivity	≥0.01 (L/mg)	Absorbance range	0.000~4.000A
Measuring speed	<10 seconds/strip	Temperature	5~40℃
Voltage	AC 220 ±22 V, 50±1 Hz	Humidity	15%~80%
