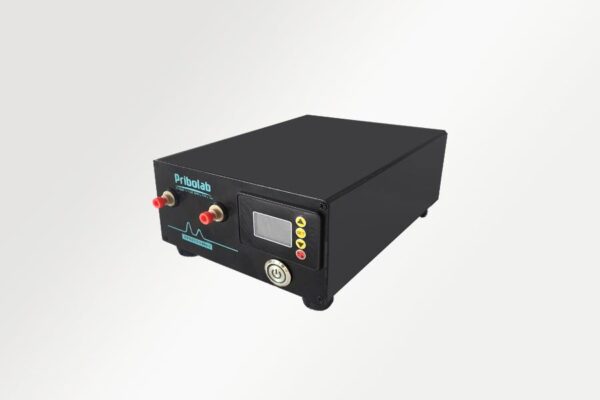

Pribolab®Mycotoxin Derivatization Units

Description

General Information

MDU is newly developed instrument, which is used for instant photo-derivatization of aflatoxins in HPLC detection, which can effectively shorten the separation time of Aflatoxin B1, B2, G1, and G2. The instrument can be connected with a LC instrument simply and conveniently to derivatize Aflatoxin B1 and G1 in real time, and the derivatization has no effect on the physical and chemical properties of Aflatoxin B2, G2, M1 and M2. It is suitable for the analysis of aflatoxins in food and pharmaceutical fields, and can directly couple with LC of all mainstream brands.

Features

Simple operation and low maintenance cost, no rinse step required.

Compatible with any HPLC
Short derivation time, and the detection can be completed in 10 minutes

Comply with AOAC2005.08, AOCS Aa 11-05-2011, European Pharmacopoeia 2.8.18 standards and other analytical methods.

Parameters

Size (h´w´d)	100 mm ´ 150 mm ´ 280 mm
Weight	3 kg
Power	220 V, 50/60 Hz, 100 W
Working environment	Temperature: -4~50℃; Relative Humidity: ≤85%
Light source	254 nm and 352 nm, 9 W Power
Drift	≤ 2.5×10-4 AU/h
Wavelength reproducibility	±1 nm
Wavelength precision	±1 nm
Band width	<5 nm
Lamp life	≥ 8000 h
Max pool pressure	100 Bar/1500 psi
Flow rate	0.2-0.6 mL/min, optimum: 0.3 mL/min
Derivative coil	FEP
Derivative pool volume	1mL
